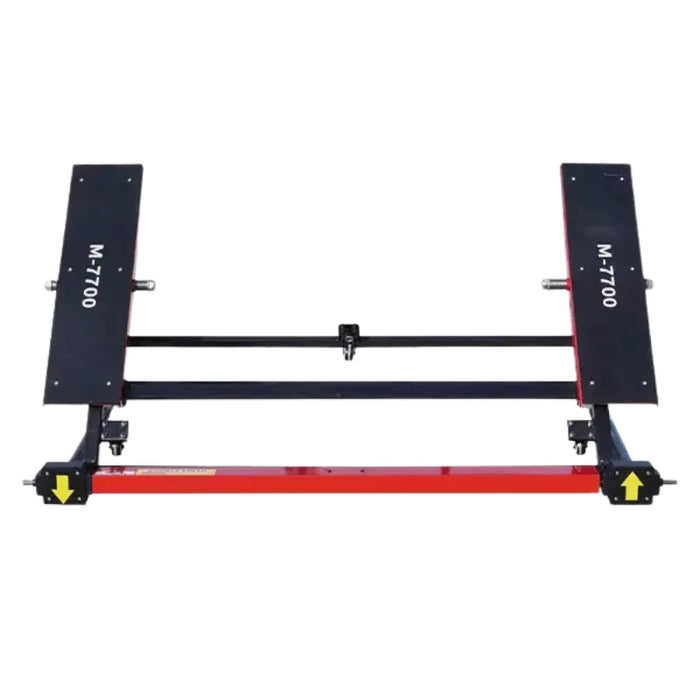

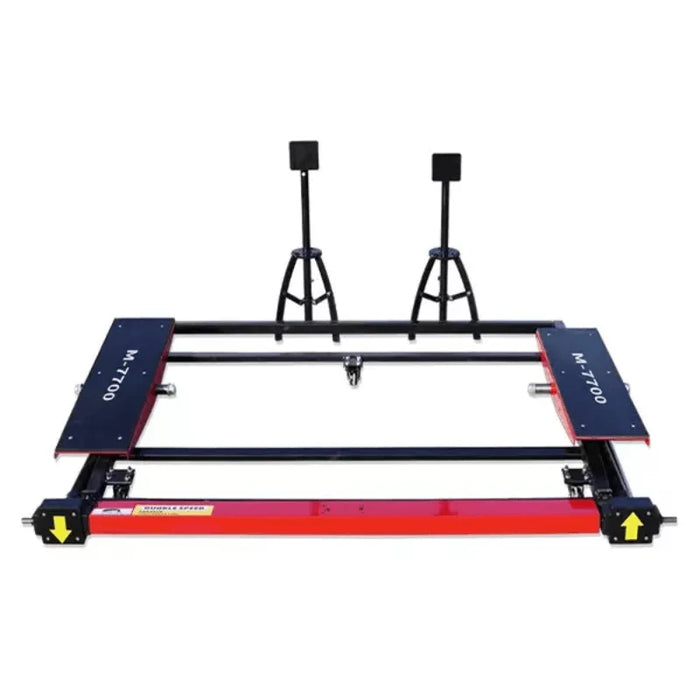

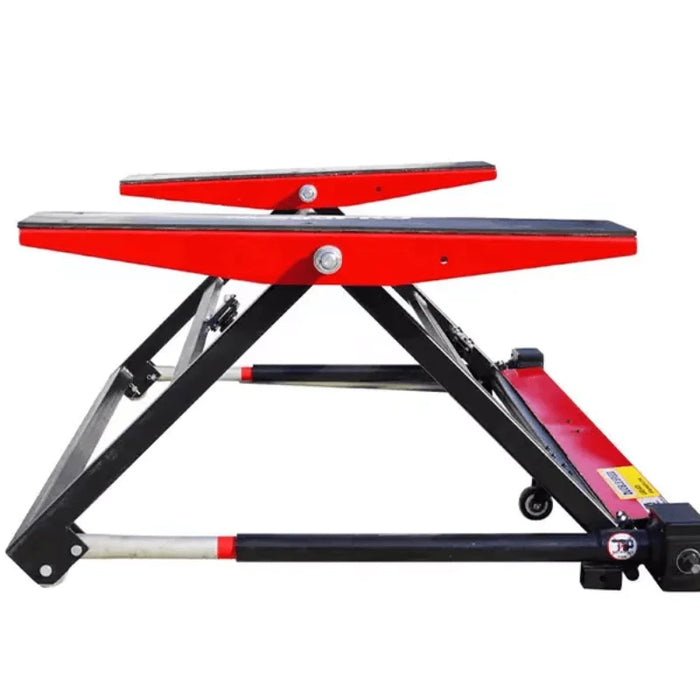

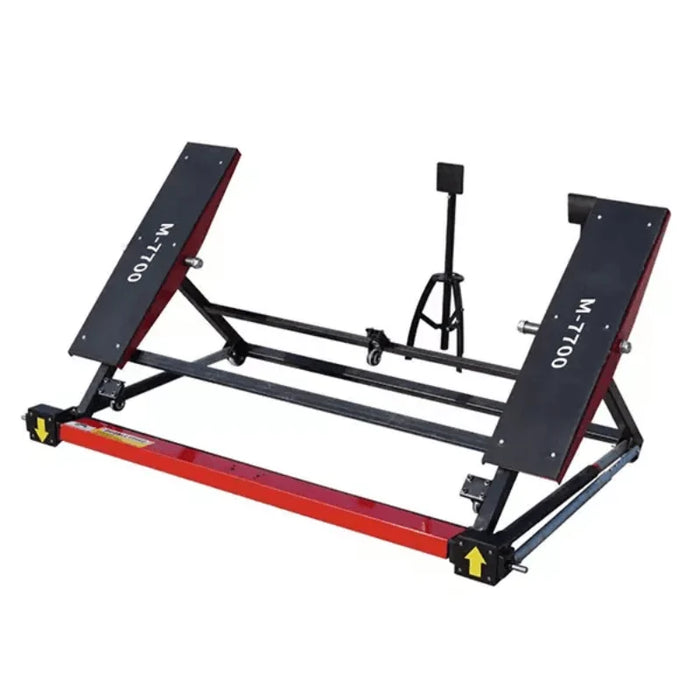

The KATOOL KT-M7700 Mini Lift is a compact portable lift designed for professional mechanics and DIY enthusiasts who need a convenient solution for quick tire changes. With a 5,500 lb capacity and a maximum lifting height of 19.69 inches, it provides useful lifting capability while maintaining a compact 69 × 53-inch footprint. Its 154 lb weight and compact design make it easier to maneuver and store when space is limited.
Built from durable steel, the KT-M7700 is designed for practical use in professional and home workshop environments. Its listed lift speed is 15 to 30 seconds, helping support efficient tire-changing work. The compact portable design makes it suitable for users who need additional lifting capability without dedicating permanent floor space to a larger lift.
What Makes It Special
- 5,500 lb lifting capacity provides substantial support for tire-changing applications.
- Compact 69 × 53-inch footprint makes the lift practical for space-conscious workshops.
- 154 lb weight allows easier maneuverability compared with larger permanent lifting equipment.
- Maximum 19.69-inch lift height provides access for tire-changing work.
- 15 to 30-second lift speed supports efficient tire-changing operations.
- Durable steel construction provides a sturdy platform for professional and DIY use.
Key Specifications
- Capacity: 5,500 lb
- Lift Height: 19.69 in
- Weight: 154lbs
- Overall Length: 69 in
- Overall Width: 53 in
- Material: Durable Steel
- Lift Speed: 15-30 seconds
- Power requirement: Power Drill (not included)
Ideal For
- Professional mechanics
- DIY enthusiasts
- Tire-changing work
- Compact workshops
- Workshops with limited storage space
What’s Included
• KATOOL KT-M7700 Mini Lift.
How to Operate Mini Lift M7700
RAISING A VEHICLE
- Ensure 2 inches of clearance under the vehicle.
- Position the Mini Lift M7700 under the centre of the vehicle to lift the whole car, or closer to the front or rear for partial lifting.
- Attach the standard 12mm drill adapter to a power drill.
- Insert the adapter into the gearbox and run the drill forward to raise the vehicle.
- Lift 3 to 6 inches and check the balance before continuing.
- Raise the vehicle to the required height. Full height takes approximately 30 seconds.
- Do not exceed the red safety limit indicator.
- Insert the locking pin to secure the lift at its extended height.
- Install a jack stand under the vehicle for additional safety.
TILTING A VEHICLE
- Ensure the vehicle is balanced at its centre of gravity.
- Lift gently from the end hood latch touching the ground, using a solid support such as the fender or bumper.
- Tilting is only possible when the vehicle is properly balanced.
LOWERING A VEHICLE
- Remove the jack stand and security locking pin.
- Insert the drill adapter into the gearbox.
- Run the drill in reverse to lower the lift.
- Stop lowering when the height reaches 120mm.
- Store the Mini Lift M7700 against a wall or off the ground when not in use.
