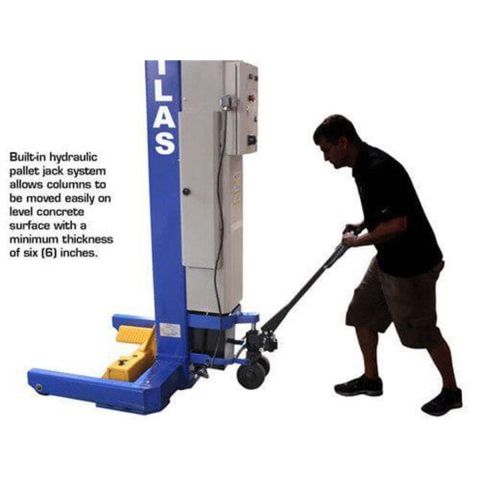

The Atlas ATEML-6051BC mobile column lift is a 111,000 lb heavy-duty lifting system designed for fleet maintenance facilities, truck repair shops, and commercial garages that handle large vehicles without permanent lift installations. This six-column battery-powered lift allows you to position each column independently around the vehicle, making it ideal for both short and long-wheelbase trucks. Its cordless operation and ALI certification ensure safe use indoors or outdoors on level concrete while maximizing workspace flexibility.
Built for high-demand environments, this Atlas mobile column lift features an advanced electronic synchronization system that keeps all columns lifting evenly for superior balance and safety. Each column is equipped with an LCD display showing real-time lifting height and an emergency stop button for added operator control. The adjustable forks accommodate tire diameters from 19" to 44", and the battery-powered system delivers approximately 10–20 lifting cycles per charge, making it highly efficient for continuous heavy-duty service operations.
What Makes it Special
- Six-column system delivers maximum lifting power for large trucks and commercial vehicles
- Battery-powered design enables true cordless operation with approximately 10–20 lifts per charge
- Electronic synchronization ensures all columns lift evenly for improved stability and safety
- Dual safety system combines hydraulic flow protection with mechanical locking mechanisms
- Adjustable forks support tire sizes from 19" to 44" for various heavy-duty applications
- Each column features an LCD display and emergency stop for enhanced operator control
Specifications
-
Capacity: 111,000 lb
-
Lift Height: 67"
-
Resting Height: 88.5"
-
Overall Length: 55.5 in
-
Overall Width: 43.5 in
-
Power Requirements: 24V DC battery system with 110V charging
-
Material: Steel
-
Warranty: 2 Year Limited
Ideal for
- Professional auto shops
- Heavy-duty truck service
- Fleet maintenance facilities
- Short and long wheelbase commercial vehicles
What’s included
- 6 mobile column lifting units
- 24V DC hydraulic power system with dual batteries per column
- Connecting cables and control system
- LCD displays, emergency stop system
