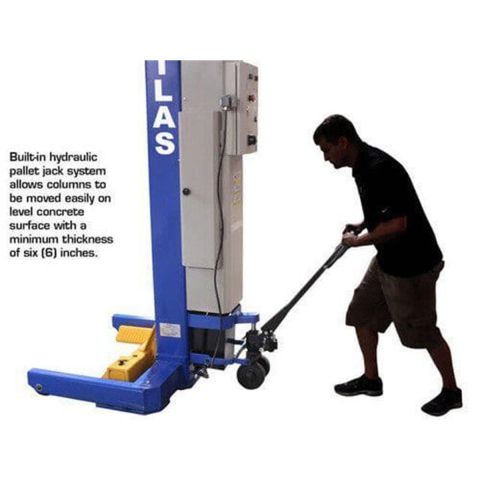

The Atlas ATEML-6045BC mobile column lift is a 99,000 lb heavy-duty lifting system designed for truck repair shops, fleet maintenance facilities, and commercial garages that need powerful lifting without permanent installation. This six-column battery-powered lift allows you to position each column around the vehicle, making it ideal for handling both short and long-wheelbase trucks. Its cordless design and ALI certification ensure safe operation indoors or outdoors on level concrete while maximizing shop flexibility.
Built for demanding daily use, this Atlas mobile column lift features an advanced electronic synchronization system that keeps all columns lifting evenly for improved balance and control. Each column is equipped with an LCD display showing real-time lifting height and an emergency stop button for enhanced safety. The adjustable forks accommodate tire diameters from 19" to 44", and the system delivers approximately 10–20 lifting cycles per charge, making it efficient for continuous heavy-duty service operations.
What Makes it Special
- Six-column configuration provides stable lifting for heavy trucks and commercial vehicles
- Battery-powered system enables true cordless operation with approximately 10–20 lifts per charge
- Electronic synchronization ensures all columns lift evenly for maximum safety and stability
- Dual safety system combines hydraulic flow control with mechanical locking mechanisms
- Adjustable forks support tire sizes from 19" to 44" for various heavy-duty vehicles
- Each column includes an LCD display and emergency stop for improved operator control
Specifications
-
Capacity: 99,000 lb
-
Lift Height: 67"
-
Resting Height: 88.5"
-
Overall Length: 55.5 in
-
Overall Width: 43.5 in
-
Power Requirements: 24V DC battery system with 110V charging
-
Material: Steel
-
Warranty: 2 Year Limited
Ideal for
- Professional auto shops
- Heavy-duty truck service
- Fleet maintenance facilities
- Short and long wheelbase commercial vehicles
What’s included
- 6 mobile column lifting units
- 24V DC hydraulic power system with dual batteries per column
- Connecting cables and control system
- LCD displays, emergency stop system
