The Atlas ATEML-4030BC mobile column lift is a 66,000 lb heavy-duty lifting system designed for repair shops, fleet maintenance facilities, and commercial garages that need flexible lifting without permanent installation. This ALI certified, battery-powered mobile lift allows you to position each column around the vehicle, making it ideal for lifting heavy trucks, buses, and long wheelbase vehicles. Its cordless design supports safe operation indoors or outdoors on level concrete while maximizing usable workspace.

Built for daily heavy-duty service, this Atlas mobile column lift system uses electronic synchronization to keep all columns lifting evenly for maximum stability and control. Each column features an LCD display for precise height monitoring and an emergency stop system for added safety. The expandable system allows you to increase capacity from a 4-column (66,000 lb) setup to 6 or 8 columns for even higher lifting capacity, while adjustable forks accommodate a wide range of tire sizes from 19" to 44".

What Makes it Special

• 66,000 lb capacity (4-column system) with expandable design up to 99,000 lb or 132,000 lb

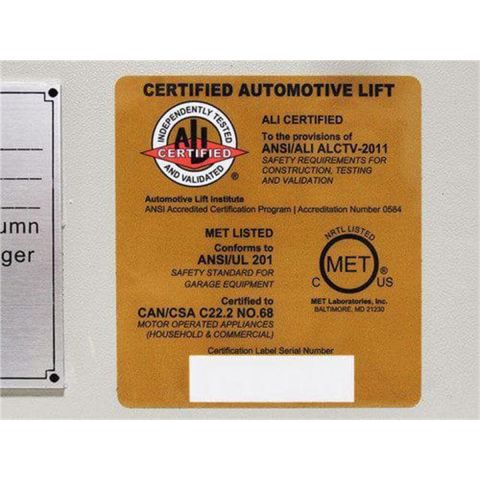

• ALI certified for verified safety and professional-grade performance
• Battery-powered system delivers cordless operation with 10–20 lifts per charge
• Electronic synchronization ensures all columns lift evenly for stable operation

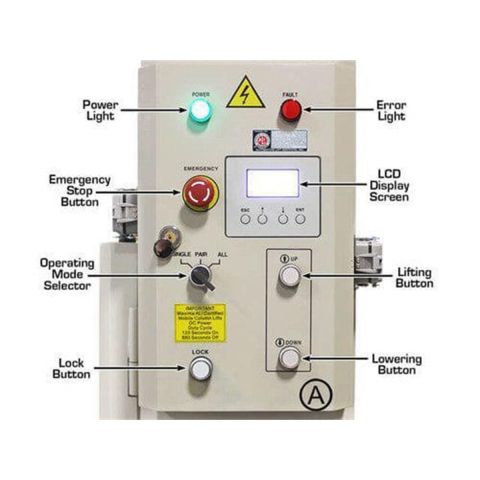

• Each column includes LCD height display and emergency stop controls
• Adjustable forks support tire diameters from 19" to 44" for wide vehicle compatibility

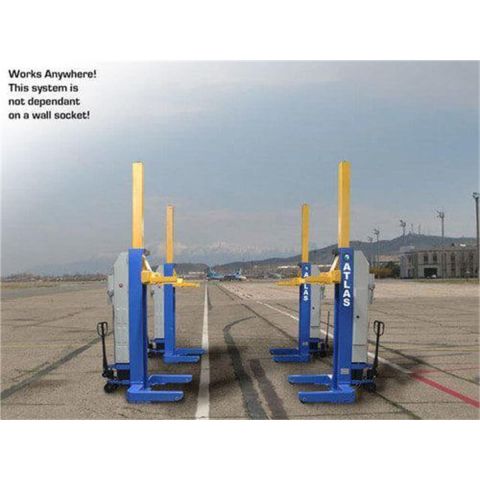

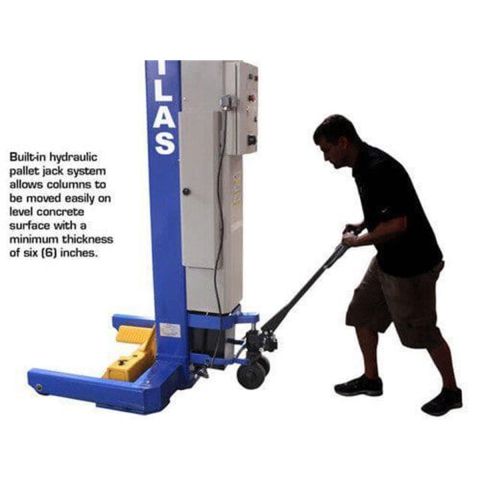

• Portable column design allows easy positioning, storage, and outdoor use

Specifications

• Capacity: 66,000 lb
• Lift Height: 67"
• Resting Height: 88.5"
• Overall Length: 55.5"
• Overall Width: 43.5"
• Power Requirements: 24V DC battery system (110V charging)
• Material: Steel
• Warranty: 2 Year Limited

Ideal for

• Professional auto shops
• Fleet maintenance facilities
• Heavy trucks, buses, and commercial vehicles
• Short and long wheelbase vehicles
• Heavy-duty maintenance and repair operations

What’s included

• Four mobile lifting columns
• 24V DC hydraulic power system with dual batteries per column
• Connecting cables and control system
• LCD displays and emergency stop system
