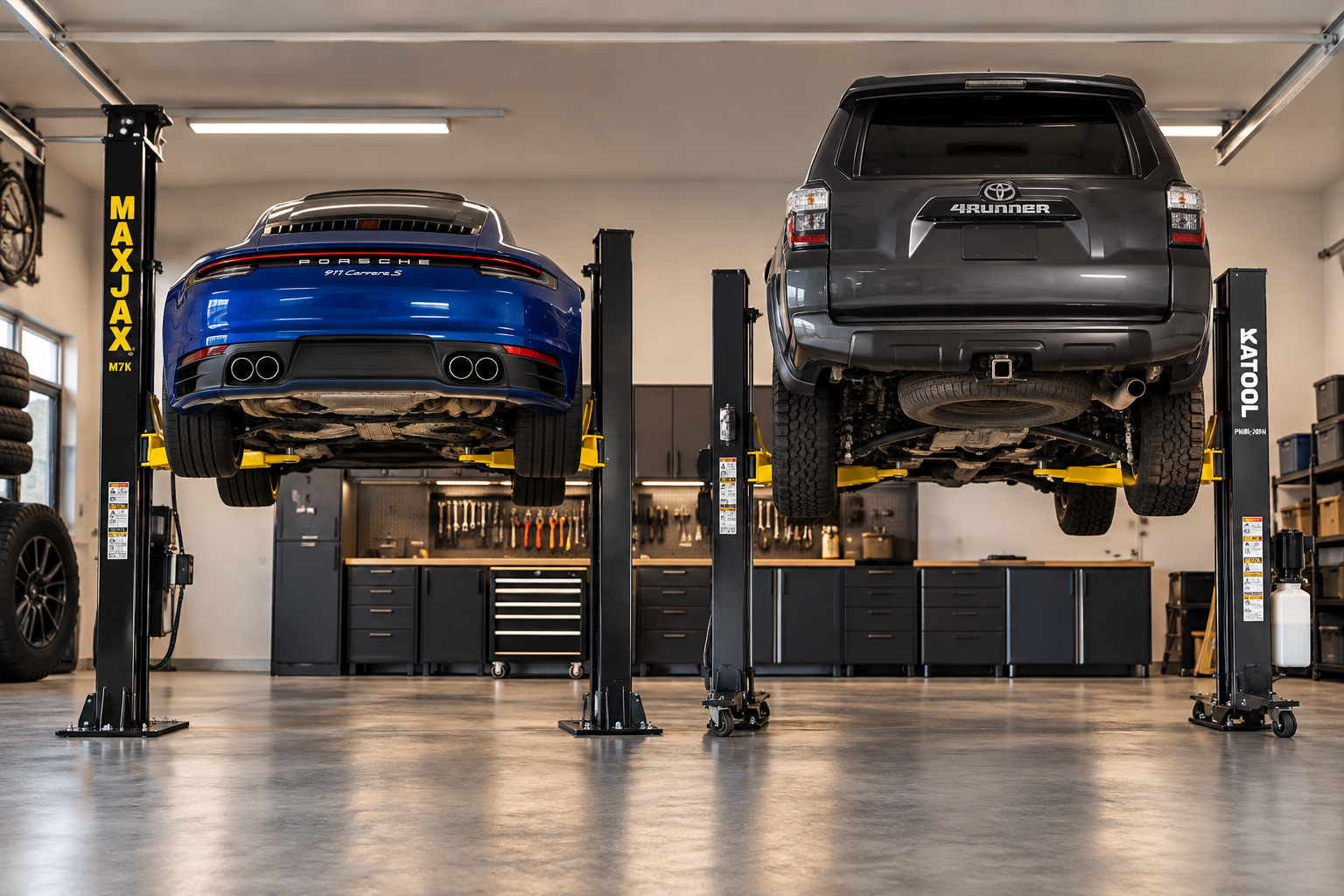

MaxJax M7K vs. Katool PMRL-200-N: Is the MaxJax Worth the Extra Money?
A portable two-post car lift can transform your home garage into a capable workspace without permanently sacrificing valuable floor space. Two popular options are the MaxJax M7K and the Katool PMRL-200-N.
Both offer 7,000-pound lifting capacity and removable columns. But the Katool is nearly 18 inches shorter and costs more than $2,000 less. Is the MaxJax worth the premium?
MaxJax vs. Katool: Specifications at a Glance
| Specification | MaxJax M7K | Katool PMRL-200-N |
|---|---|---|
| Lifting capacity | 7,000 lbs | 7,000 lbs |
| Column height | 89.5" | 71.8" |
| Maximum lifting height (standard pads) | 47.25" | 45.4" |
| Maximum lifting height (with adapters) | Varies by adapter | 51.3" |
| Minimum pad height | 5.5" | 5.25" |
| Lowest safety-lock position | Not confirmed | 13.75" |
| Electrical requirements | 120V | 120V or 240V (factory-configured) |
| Minimum concrete thickness | 4.25" | 4.25" |
| Minimum concrete strength | 3,000 PSI | 3,000 PSI |
| Advertised price | $5,195 | $2,899 |
Specifications and prices are subject to change. Verify vehicle compatibility and installation requirements before purchasing.
A Major Difference for Low-Ceiling Garages
One of the most significant differences between these lifts is their overall column height.
The MaxJax M7K stands 89.5 inches tall, while the Katool PMRL-200-N measures just 71.8 inches. That's a difference of 17.7 inches, potentially making the Katool a better choice for garages with low ceilings, exposed beams, or overhead obstructions.
Despite its shorter columns, the Katool offers comparable lifting performance.
The MaxJax reaches 47.25 inches using standard lifting pads, compared with 45.4 inches for the Katool, a difference of less than two inches. With adapters, the Katool reaches 51.3 inches.
However, column height isn't the only consideration. The height of the vehicle when raised ultimately determines the overhead clearance required. Always verify your available ceiling height before purchasing either lift.
Portability: Reclaim Your Garage Space
Both lifts feature removable columns, making them attractive to homeowners who need their garages for everyday parking as well as vehicle maintenance.
The MaxJax uses removable mounting hardware and quick-connect hydraulic fittings, allowing its columns to be disconnected and repositioned.
The Katool also features removable columns, includes floor anchors, and incorporates wheels to facilitate repositioning.
Neither lift is freestanding during operation. Both must be properly anchored to suitable concrete whenever a vehicle is raised.
For occasional home mechanics, the ability to reclaim floor space when a project is finished can be a major advantage over a conventional two-post lift.
Installation Requirements: More Similar Than Different
Both manufacturers specify a minimum concrete thickness of 4.25 inches and a compressive strength of 3,000 PSI.
Electrical requirements differ slightly. The MaxJax operates on 120V power, while the Katool is available factory-configured for either 120V or 240V operation.
Before installing either lift, confirm that your concrete slab meets the manufacturer's requirements and that the available electrical supply is suitable.
Is the MaxJax Worth an Extra $2,296?
At advertised prices of $5,195 for the MaxJax M7K and $2,899 for the Katool PMRL-200-N, the Katool costs more than 40% less.
MaxJax offers an established product platform, extensive documentation, a broad accessory selection, and additional warranty coverage for hydraulic components.
The Katool delivers the same rated lifting capacity, comparable lifting height, and similar concrete requirements at a substantially lower price. Its shorter columns may also make it more practical in garages with limited overhead clearance.
For home mechanics, the savings could fund a considerable collection of tools and equipment.
The Verdict: Which Portable Lift Should You Buy?
Choose the MaxJax M7K if its accessory ecosystem, documentation, and warranty coverage justify the higher investment.
Choose the Katool PMRL-200-N if you prioritize value, need shorter columns, or want the flexibility of selecting a 120V or 240V configuration.
Both lifts offer practical solutions for home garages, but the Katool makes a particularly compelling case for budget-conscious buyers.
Ready to upgrade your garage? Explore the Katool PMRL-200-N at Garage Lifts Direct, or contact our team for help determining whether it's right for your workspace.
